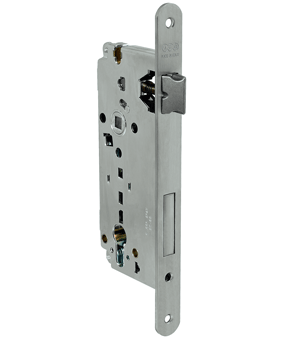

MORTICE LOCK

Embedded lock with spring latch and bolt to be used in combination with a european profile cylinder.For timber or PVC doors and entrance doors. The dimensions of the lockcase allows the lock to be changed with the Large patent. Therefore it is possible to standardise authomatized production by executing the same cutouts in the panels.
Spindle centre: 85 mm
Forend: steel or brass, width 16 mm and 18 mm with rounded ends, 22 mm with rounded or squared ends
Backset: from 20 to 70 mm
Versions: with spring latch and bolt or bolt only
Spring latch: reversible, rounded on both sides to prevent door rattling.
Characteristics: Completely sealedlockcase edges prevent penetration of wood chips or dust into the internal mechanisms. Zinc plated steel case and cover. Bolt made of same material as forend.
Finishes: STEEL Bronze plated, varnished brass plated, bichromated, nickel plated, matt chromium plated. BRASS varnished polished. STAINLESS STEEL
